Pot Ptfe Bearings

---

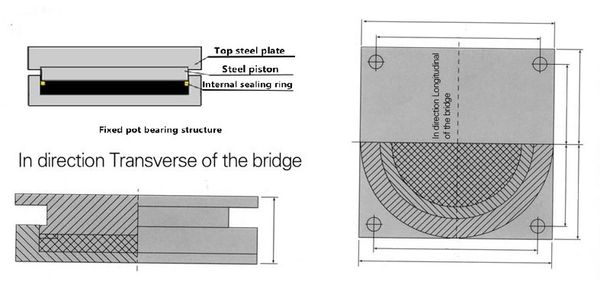

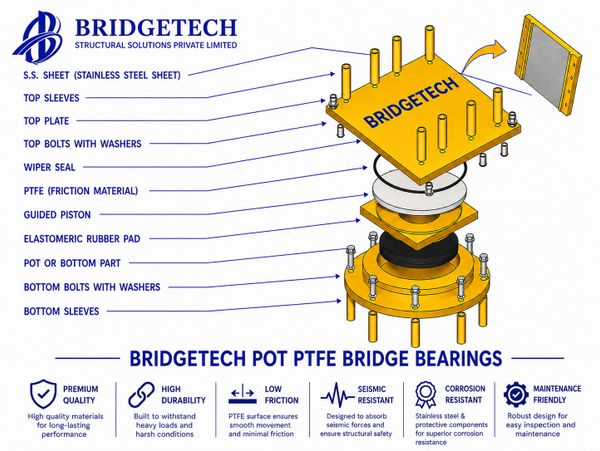

 A bearing consisting of a metal piston supported by a disc of unreinforced elastomer that is confined within a metal cylinder for allowing rotational movement about any axis in horizontal plane and to bear and transmit vertical load. Pot bearings may be provided with sliding assembly (with or without restraint in the form of guide along a desired direction to bear and transmit horizontal force) comprising of stainless steel plate attached to metal backing plate  sliding in horizontal plane over sliding material confined in recess(s) on the piston which shall be termed as Sliding / Guided Pot bearings.

 A type of Pot bearing which along with vertical load bears and transmits horizontal force in one direction only and allows movement perpendicular to that direction and allows rotation about any axis in horizontal plane
